pygsaVision

360Label

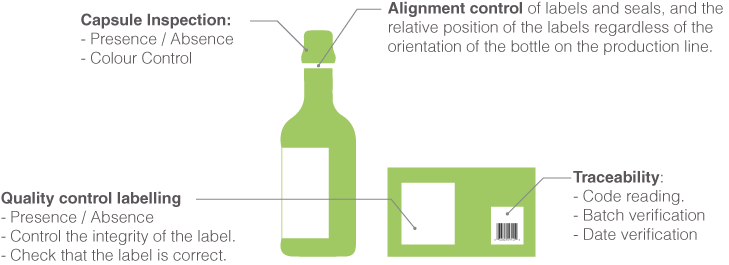

Is an equipment specially designed for the control of the correct labeling of bottles. The system allows the control of cylindrical and square bottles in the same point of inspection, regardless the cylindrincal bottles orientation in the production line since the system is able to absorb the turns of the bottle and the position on the conveyor belt. It requires a minimum space of 65mm between products.

pygsaVision 360Label HS

Quality control labelling The pygsaVision High Speed is a quality control Labelling equipment that can be used in applications for more than 6000 inspections per hour.

pygsaVision 360Label LS

Quality control Labelling equipment that can be used in applications for less than 6000 inspections per hour.

Advantages -------------------------------------------------------

Quality
Production optimization
Fault reduction
Customer claims reduction
Objective control

Inspections-------------------------------------------------------------------------

It includes a user-friendly pygsaVision software even for people with no experience in Artificial Vision Systems. Besides, it incorporates simple inspection tools and intuitive features that allows:
  • Handles multiple formats.
  • Unique 360-degree image capture system.
  • Tele-assistance.
  • Interface to existing line systems (SCADA,MES).
  • Protects the system from unauthorized line staff with passwords (3 security levels).
  • The creation of statistics and database for the control and management production.
  • Provides value information to the production management system.
  • Enables and disables the expulsion from the software.
  • Selection of active inspections and Inactive from the software.
pygsaVision 360Label HS is used for more than 6000 inspections per hour.
  • Fan-less industrial computer that ensures the Optimum performance of the system.
  • 17 "LED display for the inspections and control of the application.
  • High-performance led lighting systems power.
  • Enclosure for keyboard and mouse protection.
  • Power supply 220V/12V and 24V hardware.
  • Status light beacon.
  • Stainless steel finishes AISI 304 or 316 and aluminum and nylon machines.
  • Baked paint to ensure its long-term durability.
  • Easy and flexible change of formats, optional automatic format change system.
  • Safety disconnect sequence before inadequate system shutdowns. (Do not protects against power cuts).
  • 18 months Warranty against manufacturing defects.
  • No maintenance required.

pygsaVision 360Label LS is used for less than 6000 inspections per hour.
  • Fan-less industrial computer that ensures the Optimum performance of the system.
  • 17 "LED display for the inspections and control of the application.
  • High-performance led lighting systems power.
  • Enclosure for keyboard and mouse protection.
  • Power supply 220V/12V and 24V hardware.
  • Status light beacon.
  • Stainless steel finishes AISI 304 or 316 and aluminum and nylon machines.
  • Baked paint to ensure its long-term durability.
  • Easy and flexible change of formats, optional automatic format change system.
  • Safety disconnect sequence before inadequate system shutdowns. (Do not protects against power cuts).
  • 18 months Warranty against manufacturing defects.
  • No maintenance required.
